89 / 878
Select –2–29
IWHM3624
IWHM4224
IWHM4824
IWHM5424
IWHM6024
IWHM6624
IWHM3630
IWHM4230
IWHM4830
IWHM5430
IWHM6030
IWHM6630
IWHM3636
IWHM4236
IWHM4836
IWHM5436
IWHM6036
IWHM6636
IWHM3642
IWHM4242
IWHM4842
IWHM5442
IWHM3648
IWHM4248
IWHM4848
IWHM5448
IWHM3654
IWHM4254
IWHM4854
3 Panel Styles (Same panel restrictions as Wainscot):
Beaded — BP
Raised — RP
Flat — FP
3 Moulding Options:
SCVM8 — SCVM8
SCM — SCM
CM — CM
2 Valance Options:
Narrow Arch Valance (8¾”) — NAV
Narrow Straight Valance (8¾”) — NSV

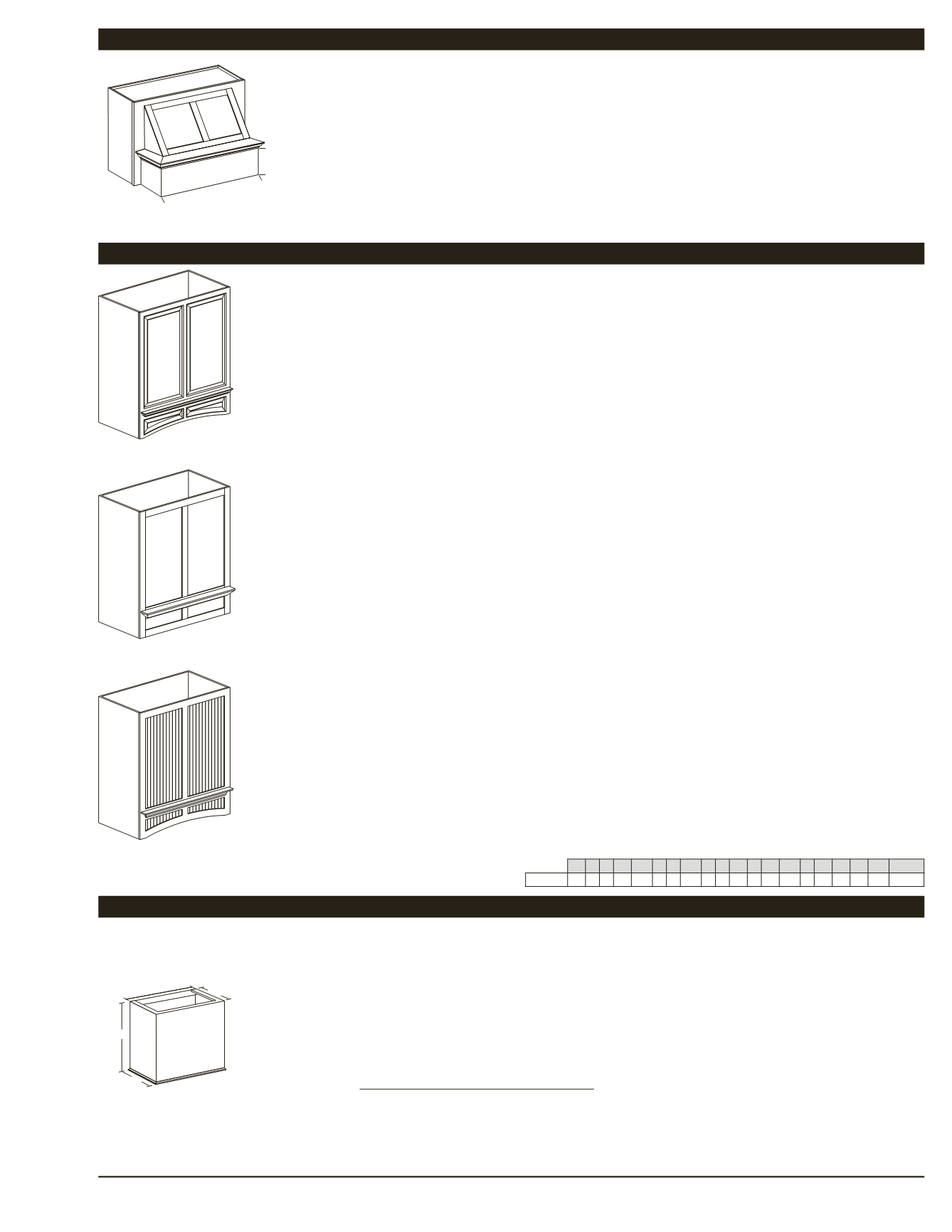

MANTLE STYLE INTEGRAL WOOD HOODS
• Available in Raised, Beaded or Flat panel
designs; not door style specific
• For Thermofoil or MDF door styles, hood
is painted maple
• ¾” Plywood flush finished ends
• Cabinet does not have top
• Front Only option can be used in wainscot
applications
• See page Select–2–31 for liner, fan and
installation information
• Mantle ledge depth is 3"
24,
30,
36,
42,
48,
54
23
36, 42, 48, 54, 60, 66
24,
30,
36,
42,
48,
54
23
36, 42, 48, 54, 60, 66
24,
30,
36,
42,
48,
54
23
36, 42, 48, 54, 60, 66
IWHM4248 RP CM NAV
IWHM4248 FP SCM NSV
IWHM4248 BP SCVM8 NAV
WOOD HOOD CHIMNEYS
Chimney is 32” high for use with 10’ ceiling and can be trimmed for 8’ or 9’ ceiling applications. Plywood construction standard. Chimney is
not designed to support hood. Finish techniques are not included.
20
1
/
2
, 26
1
/
2
, 32
1
/
2
, 38
1
/
2
*
32
16
15
1
/
4
* Actual width dimensions including moulding:
CMNY36 — 22”
CMNY42 — 28”
CMNY48 — 34”
CMNY54 — 40”
CMNY36P
CMNY42P
CMNY48P
CMNY54P
Plain Chimney
• Hood must be ordered separately
• Use with CWH36P, CWH42P, CWH48P,
CWH54P
• IC3/4 moulding is attached to chimney
for decorative purposes
•
For MDF and Thermofoil door styles,
item is painted maple. For Laminate
door styles in Natural Maple, Sienna,
Spiceberry, Linen or White finishes, item
is finished maple. For Laminate door
styles in Natural Cherry finish, item is
finished cherry.
INTEGRAL WOOD HOODS (continued)
19
1
/
2
7
3
/
4
24
26, 32, 38
12
30, 36, 42
Integral Wood Hood
IWH3024
IWH3624
IWH4224
• Designed for installation between
standard depth wall cabinets
• For MDF and Thermofoil door styles,
item is painted maple. For Laminate
door styles in Natural Maple, Sienna,
Spiceberry, Linen or White finishes, item
is finished maple. For Laminate door
styles in Natural Cherry finish, item is
finished cherry.
Semi-Custom
APC BO ES FCE FDBS FH FI FIMD FO ID MFE P PCE PWD RD RTK TKA VTK WCM WDSC
SEL
s s
●
s s
