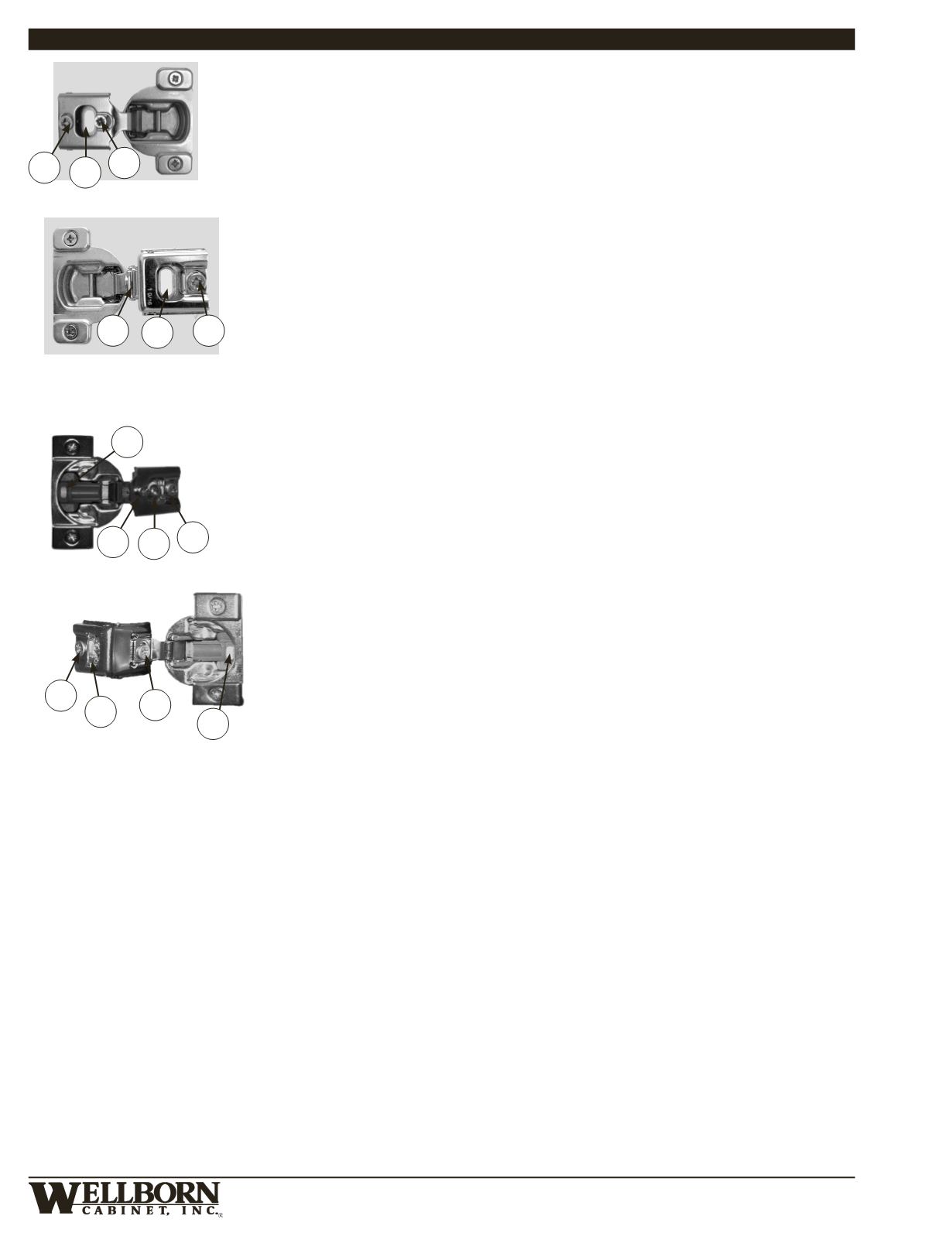

HINGE ADJUSTMENTS
Hinge adjustment for all traditional overlay door styles used on all (2) door cabinets
without center mullion:
1 Height Adjustment:
Loosen fixing screw (screw #1) on all hinges of one door.
Move door to desired position. Retighten fixing screws on all hinges.
2 Side Adjustment:
Loosen side adjustment screw (screw #2) on all hinges of one
door. Move door to desired position. Retighten fixing screws on all hinges. You
have up to 1.5mm (
1
⁄
16
”) in each direction.
3 Depth Adjustment:
The cam (screw #3) moves the door in and out for depth of
each hinge, just turn to adjust.
Smooth Close Hinge adjustment for all traditional overlay door styles used on all (2)
door cabinets without center mullion:
1 Height Adjustment:
Loosen fixing screw (screw #1) on all hinges of one door.
Move door to desired position. Retighten fixing screws on all hinges.
2 Side Adjustment:
Loosen side adjustment screw (screw #2) on all hinges of one
door. Move door to desired position. Retighten fixing screws on all hinges. You
have up to 1.5mm (
1
⁄
16
”) in each direction.
3 Depth Adjustment:
The cam (screw #3) moves the door in and out for depth of
each hinge, just turn to adjust.
4 Smooth Close Adjustment:
On/Off switch on each hinge allows adjustment of
door closure speeds.
*TOL
1 2
3
*FOL
3
2
Hinge adjustment for all full overlay door styles:
1 Height Adjustment:
Loosen fixing screw (screw #1) on all hinges of one door.
Move door to desired position. Retighten fixing screws on all hinges.
2 Side Adjustment:
Loosen fixing screws (screw #1). Turn side
adjustment screw (screw #2) until door is in proper position. You have up to
1.5mm (
1
⁄
16
”) in each direction. Retighten fixing screw.
3 Depth Adjustment:
The cam (screw #3) moves the door in and out for depth of
each hinge, just turn to adjust.
Caution:
Doors should not bind on adjacent doors or front of cabinet.
Smooth Close Hinge adjustment for all full overlay door styles:
1 Height Adjustment:
Loosen fixing screw (screw #1) on all hinges of one door.
Move door to desired position. Retighten fixing screws on all hinges.
2 Side Adjustment:
Loosen fixing screws (screw #1). Turn side
adjustment screw (screw #2) until door is in proper position. You have up to
1.5mm (
1
⁄
16
”) in each direction. Retighten fixing screw.
3 Depth Adjustment:
The cam (screw #3) moves the door in and out for depth of
each hinge, just turn to adjust.
4 Smooth Close Adjustment:
On/Off switch on each hinge allows adjustment of
door closure speeds.
Caution:
Doors should not bind on adjacent doors or front of cabinet.
* Use #2 Phillips head screwdriver for all adjustments
* Use #2 Phillips head screwdriver for all adjustments
*FOL
1 2
4
3
*TOL
1 3
2
4
