Premier–2–72

IWHM3624

IWHM4224

IWHM4824

IWHM5424

IWHM6024

IWHM6624

IWHM3630

IWHM4230

IWHM4830

IWHM5430

IWHM6030

IWHM6630

IWHM3633

IWHM4233

IWHM4833

IWHM5433

IWHM6033

IWHM6633

IWHM3636

IWHM4236

IWHM4836

IWHM5436

IWHM6036

IWHM6636

IWHM3642

IWHM4242

IWHM4842

IWHM5442

IWHM3648

IWHM4248

IWHM4848

IWHM5448

IWHM3651

IWHM4251

IWHM4851

IWHM5451

IWHM3654

IWHM4254

IWHM4854

3 Panel Styles (Same panel restrictions as Wainscot):

Beaded — BP

Raised — RP

Flat — FP

3 Moulding Options:

SCVM8 — SCVM8

SCM — SCM

CM — CM

2 Valance Options:

Narrow Arch Valance (8¾”) — NAV

Narrow Straight Valance (8¾”) — NSV

MANTLE STYLE INTEGRAL WOOD HOODS

• Available in Raised, Beaded or Flat panel

designs; not door style specific

• For Thermofoil or MDF door styles, hood

is painted maple

• ¾” Plywood flush finished ends

• Cabinet does not have top

• Front Only option can be used in wainscot

applications

• See page Premier–2–74 for liner, fan and

installation information

• For Removable Front option, see

Semi-Custom section

• Mantle ledge depth is 3”

24,

30,

33,

36,

42,

48,

51,

54

23

36, 42, 48, 54, 60, 66

24,

30,

33,

36,

42,

48,

51,

54

23

36, 42, 48, 54, 60, 66

24,

30,

33,

36,

42,

48,

51,

54

23

36, 42, 48, 54, 60, 66

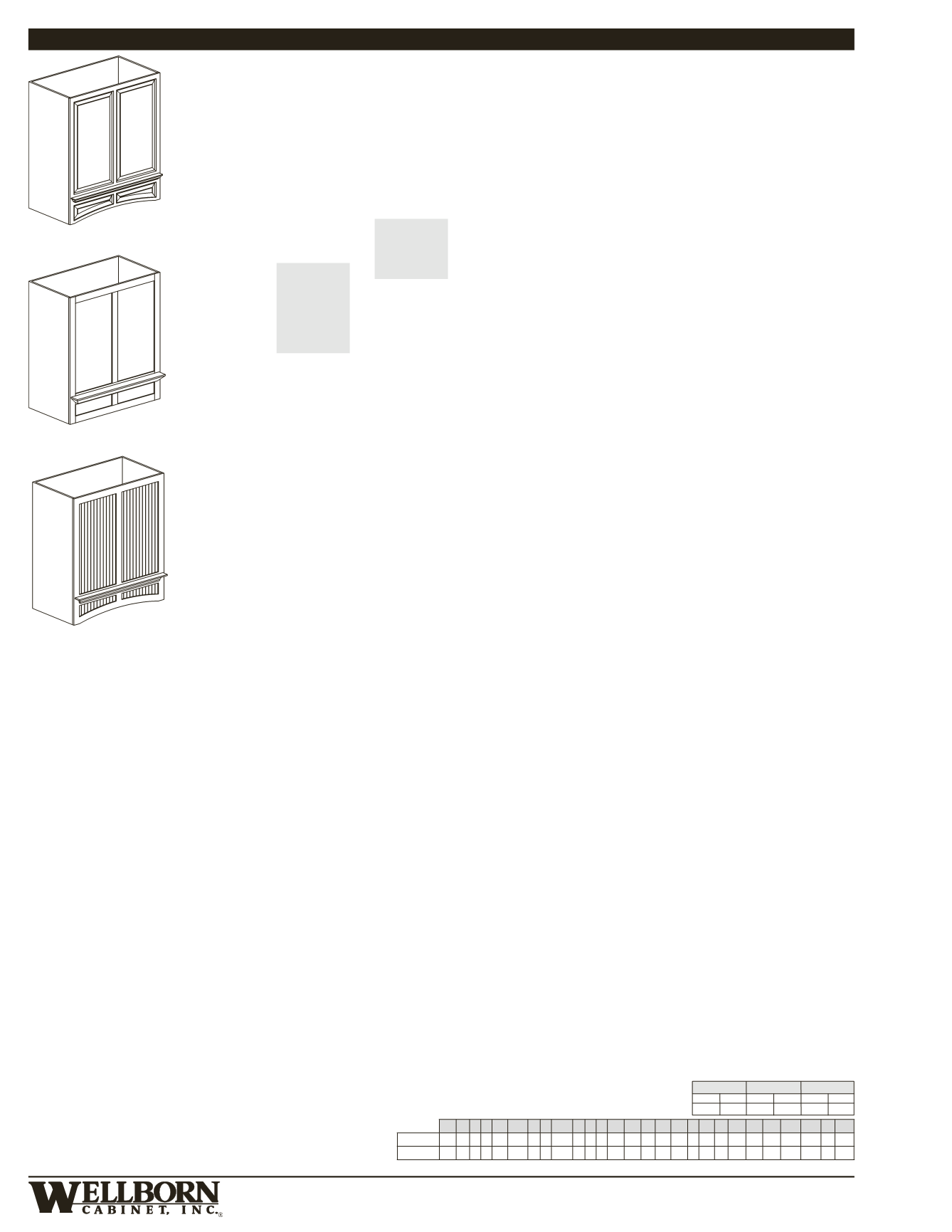

IWHM4248 RP CM NAV

IWHM4248 FP SCM NSV

IWHM4248 BP SCVM8 NAV

WIDTH

HEIGHT

DEPTH

Min.

Max.

Min.

Max.

Min.

Max.

Semi-Custom

APC BO CC ES FCE FDBS FH FI FIMD FO ID IF IME MFE MD MH MW P PCE RD RTK TKA VTK WBR WCM WS WTR

FOL/TOL

s

s

s

s

INS

s

s

s

s
