HINGE SPECIFICATIONS
*TOL
1 2
3
*FOL
3
2

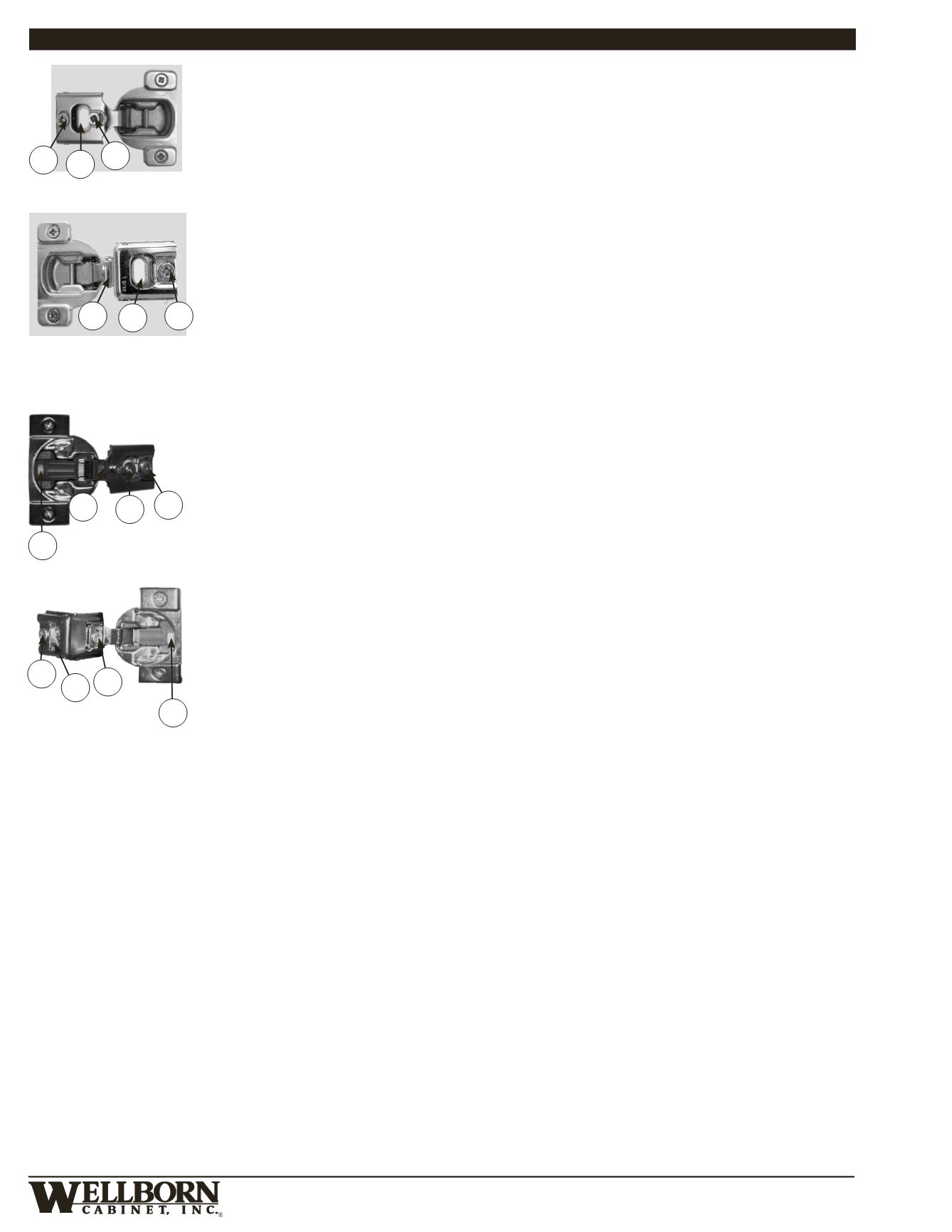

Hinge adjustment for all full overlay door styles:
1 Height Adjustment:
Loosen fixing screw (screw #1) on all hinges of one door. Move door to desired
position. Retighten fixing screws on all hinges.
2 Side Adjustment:
Loosen fixing screws (screw #1). Turn side adjustment screw (screw #2) until door is in
proper position. You have up to 1.5mm (
1
⁄
16
”) in each direction. Retighten fixing screw.
3 Depth Adjustment:
The cam (screw #3) moves the door in and out for depth of each hinge, just turn to
adjust.
Caution:
Doors should not bind on adjacent doors or front of cabinet.
* Use #2 Phillips head screwdriver for all adjustments
* Use #2 Phillips head screwdriver for all adjustments
Hinge adjustment for all traditional overlay door styles used on all (2) door cabinets without center mullion:
1 Height Adjustment:
Loosen fixing screw (screw #1) on all hinges of one door. Move door to desired
position. Retighten fixing screws on all hinges.
2 Side Adjustment:
Loosen side adjustment screw (screw #2) on all hinges of one door. Move door to
desired position. Retighten fixing screws on all hinges. You have up to 1.5mm (
1
⁄
16
”) in each direction.
3 Depth Adjustment:
The cam (screw #3) moves the door in and out for depth of each hinge, just turn to
adjust.
Smooth Close Hinge adjustment for all traditional overlay door styles used on all (2) door cabinets without
center mullion:
1 Height Adjustment:
Loosen fixing screw (screw #1) on all hinges of one door. Move door to desired
position. Retighten fixing screws on all hinges.
2 Side Adjustment:
Loosen side adjustment screw (screw #2) on all hinges of one door. Move door to desired
position. Retighten fixing screws on all hinges. You have up to 1.5mm (
1
⁄
16
”) in each direction.
3 Depth Adjustment:
The cam (screw #3) moves the door in and out for depth of each hinge, just turn to
adjust.
4 Smooth Close Adjustment:
On/Off switch on each hinge allows adjustment of door closure speed.
Smooth Close Hinge adjustment for all full overlay door styles:
1 Height Adjustment:
Loosen fixing screw (screw #1) on all hinges of one door. Move door to desired
position. Retighten fixing screws on all hinges.
2 Side Adjustment:
Loosen fixing screws (screw #1). Turn side adjustment screw (screw #2) until door is in
proper position. You have up to 1.5mm (
1
⁄
16
”) in each direction. Retighten fixing screw.
3 Depth Adjustment:
The cam (screw #3) moves the door in and out for depth of each hinge, just turn to
adjust.
4 Smooth Close Adjustment:
On/Off switch on each hinge allows adjustment of door closure speed.
Caution:
Doors should not bind on adjacent doors or front of cabinet.
