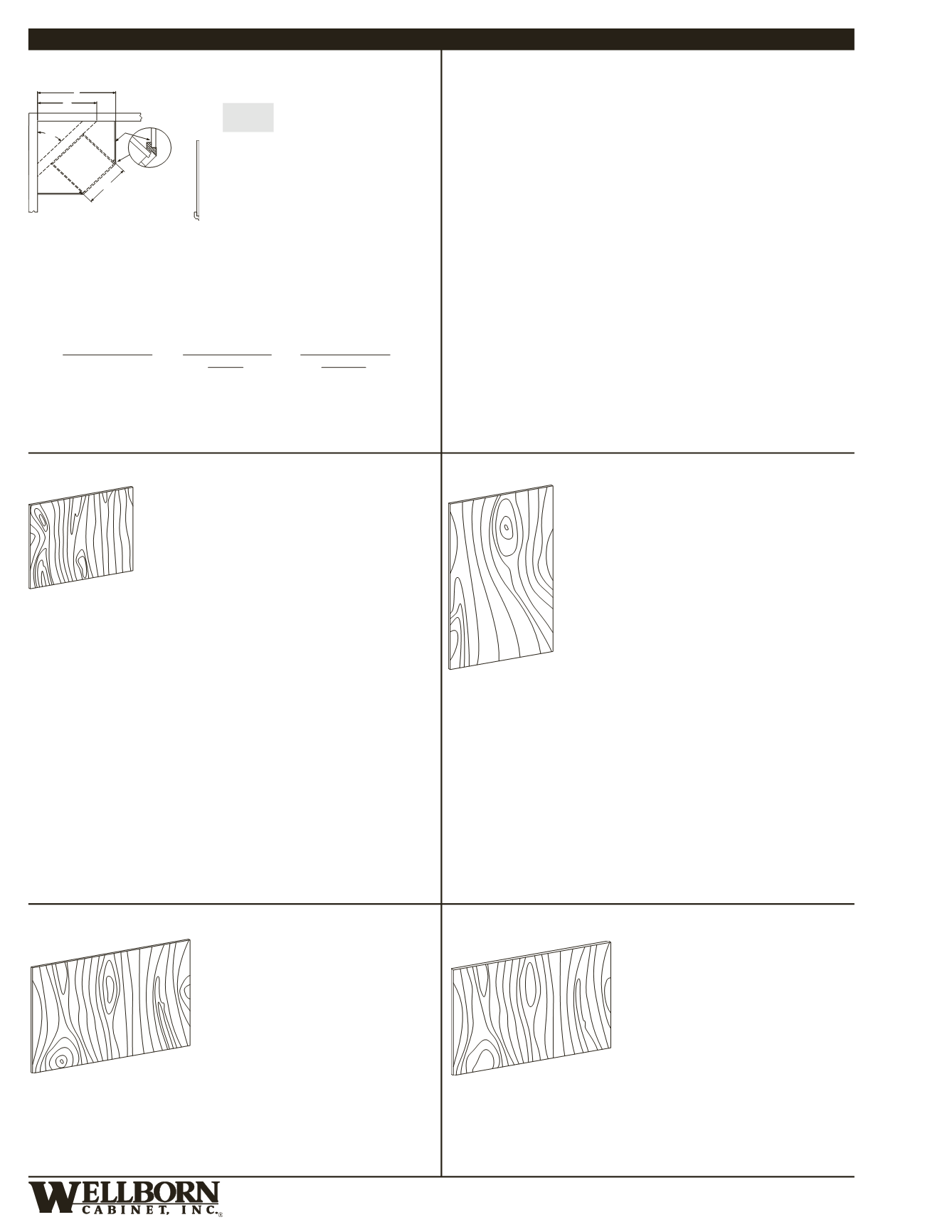

Wellborn Select & Premier Specification Book

228 / 878

Select –8–18
• ¾” Plywood
• Diagonal transitional moulding
available in moulding section
• For MDF and Thermofoil door
styles, items are finished maple
• For Laminate door styles, items are
finished wood veneer
Corner Tall End Panel
CTEP84
CTEP90
CTEP93
CTEP96
Installation Diagram
A=Cabinet Width
24
27
30
33
36
B=Distance from
Corner
41
431 ⁄16
45 3⁄16
473 ⁄16
49 7⁄16
C=Optional Wall
Location
31
331⁄8
351⁄4
373 ⁄8
39½
24
A
Cabinet
Optional Wall
45°
C
B
CTEP
Wall
Wall
• 3⁄16” Plywood
• Order finish same as cabinets
• Specialty Finishes available
• For MDF and Thermofoil door
styles, items are finished maple
• For Laminate door styles, items are
finished wood veneer
FBP4896V (Veneer)
Finish Back Panel (continued)
• 1 ⁄8 ” MDF
• Order finish same as cabinets
• Specialty Finishes not available
• For a matching finish, order a
veneer back panel
• All Laminate End Panels are
laminated furniture board
FBP4896L (Laminate)
Finish Back Panel
• 1 ⁄8 ” MDF
• Order finish same as cabinets
• Specialty Finishes not available
• For a matching finish, order a
veneer back panel
• All Laminate End Panels are
laminated furniture board
FBP4836L (Laminate)
FBP4848L (Laminate)
FBP4836V (Veneer)
FBP4848V (Veneer)
• 3⁄16” Plywood
• Order finish same as cabinets
• Specialty Finishes available
• For MDF and Thermofoil door
styles, items are finished maple
• For Laminate door styles, items are
finished wood veneer
PANELS (continued)
• ½” Veneer MDF core panel
• Order finish same as cabinets
• For MDF and Thermofoil door
styles, items are finished maple
• For Laminate door styles, items are
finished wood veneer
1/2FBP9648V (Veneer) FBP9648V (Veneer)
• 3 ⁄16” Plywood
• Order finish same as cabinets
• For MDF and Thermofoil door
styles, items are finished maple
• For Laminate door styles, items are
finished wood veneer
Finish Back Panel (continued) Finish Back Panel (continued)
