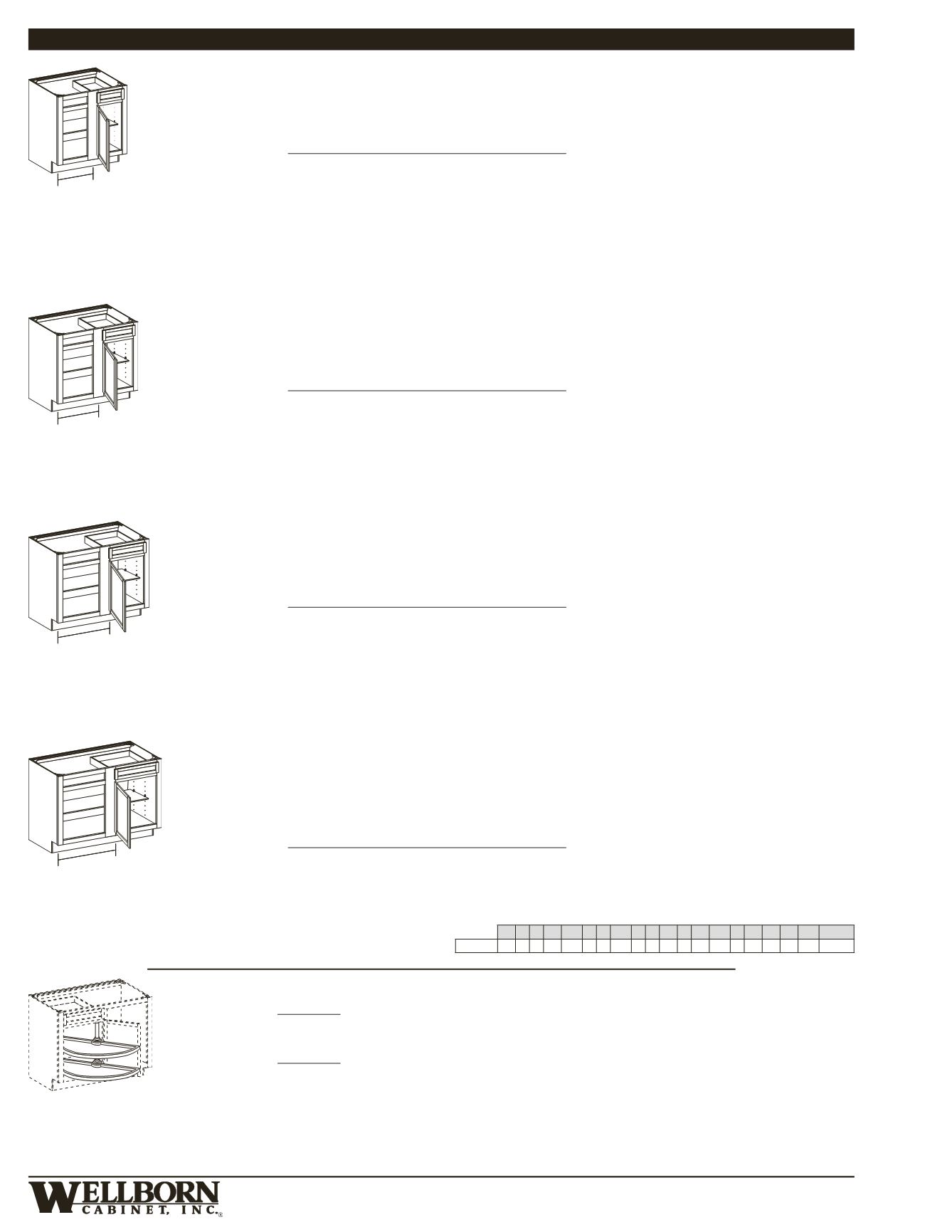

Select –3–16
• Must order L or R blind
• Center Stile is 6½”
39” Base Blind Corner Cabinet
BBC39L
BBC39R
• Must order L or R blind
• Center Stile is 6½”
*Distance from frame edge to edge of closed door
TOL = 16¼”
FOL = 153⁄ 16”
1 Drawer,
1 Door,
1 Adj. shelf
36” Base Blind Corner Cabinet
*
Left Blind Shown
BBC36L
BBC36R
1 Drawer,
1 Door,
1 Adj. shelf
*Distance from frame edge to edge of closed door
TOL = 19¼”
FOL = 183⁄ 16”
*
Left Blind Shown
• Must order L or R blind
• Center Stile is 6½”
42” Base Blind Corner Cabinet
BBC42L
BBC42R
1 Drawer,
1 Door,
1 Adj. shelf
*Distance from frame edge to edge of closed door
TOL = 22¼”
FOL = 213⁄ 16”
• Must order L or R blind
• Center stile is 6½”
45” & 48” Base Blind Corner Cabinet
1 Drawer,
1 Door,
1 Adj. shelf
BBC45L
BBC45R
BBC48L
BBC48R
*Distance from frame edge to edge of closed door
BBC45
TOL = 25¼”
FOL = 243⁄ 16”
BBC48
TOL = 26¾”
FOL = 25 11 ⁄16 ”
*
Left Blind Shown
*
Left Blind Shown
• Bottom shelf slides out
• White shelves attach to bar behind center
mullion
• Remove existing cabinet shelf and install
swing out shelves before countertop
installation
Swing Out Shelves for Corner Base
For BBC42
SOS42W
For BBC45
SOS45W
Semi-Custom APC BO ES FCE FDBS FH FI FIMD FO ID MFE P PCE PWD RD RTK TKA VTK WCM WDSC
SEL ● ● ● ● ● ● ● ● ● ● ● ● ● ● s ● ●
BASE BLIND CORNER CABINETS (continued)
